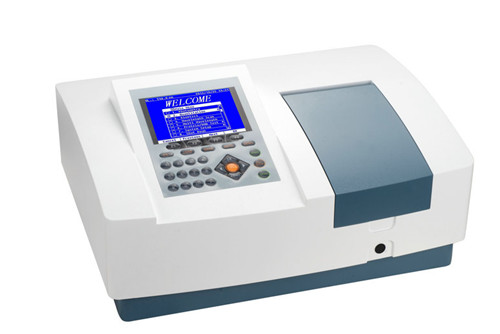

UV1800 Single Beam Spectrophotometer
Item No.: UV1800
Large 320*240 dots highlighted LCD. The instrument can independently accomplish photometric measurement and quantitative measurement, spectral scanning, dynamics, DNA/protein test, wavelength testing and data printing function, etc.
Description
| UV1800 Single Beam Scanning Spectrophotometer | |||
| Product Description: | |||
| The latest ARM system and long optical system ensure high accuracy and good stability of the instrument. They are the best choice of high quality spectrophotometer. | |||
| Features: | |||
| 1. Large 320*240 dots highlighted LCD. | |||
| 2. The instrument can independently accomplish photometric measurement and quantitative measurement, spectral scanning, dynamics, DNA/protein test, wavelength testing and data printing function, etc. | |||
| 3. The USB port can be used for data transfer and storage. | |||
| 4. Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging. | |||
| 5. Large room for samples can hold cuvettes of various specifications. | |||
| Specifications: | |||
| Model | UV1801 | UV1801S | UV1800 |
| Optical System | Single Beam, Grating 1200 lines/mm | ||
| Wavelength Range | 190 - 1100 nm | ||
| Spectral Bandwidth | 1nm | 0.5/1/2/4/5nm | 2nm |
| Wavelength Accuracy | 0.3nm | 0.5nm | |
| Wavelength Repeatability | 0.1nm | 0.2 nm | |
| Photometric Accuracy | ±0.3%T | ±0.5%T | |
| Photometric Repeatability | 0.1%T(0~100%T) | ||
| Photometric Range | -0.3-3A | ||
| Stray Light | 0.05%T@220nm,360nm | ||
| Stability | ±0.001 A/h @500 nm | ||
| Baseline Flatness | ±0.002 A | ||
| Noise | ±0.001 A | ||
| Scanning Speed | Fast, Mid, Slow | ||
| Wavelength setting | Auto | ||
| Keyboard | Membrane keypad | ||
| Light Source | Imported Deuterium & Tungsten lamp | ||
| Display | 320*240 dots LCD | ||
| Detector | Imported Silicon Photodiode | ||
| Output | USB port & Parallel port ( Printer) | ||
| Power | AC 220V/50Hz; AC 110V/60Hz | ||
| Dimension | 590 x 475 x 250mm | ||
| Net Weight | 20kg | ||
| Shipping Size | 770*630*340mm | ||
| Gross Weight | 26kg | ||
